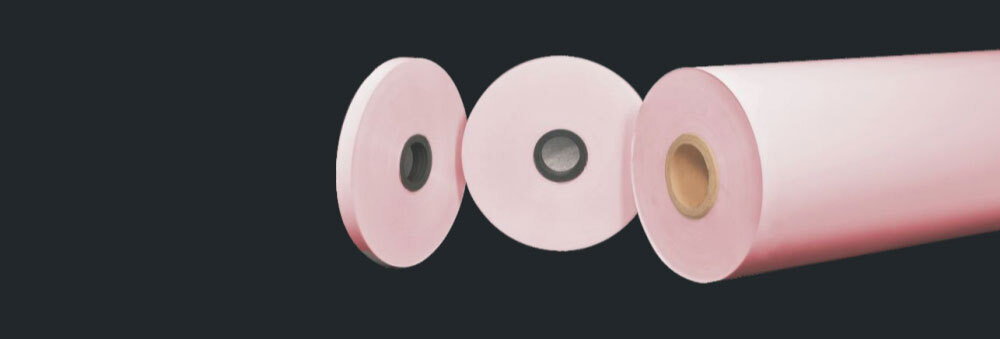

Flexible Laminates DMD Class F / FPF

DMD-F Class polyster film/polyster non-woven flexible laminates is a three layer made of high melting point polyester film laminated with Class F adhesive. It has excellent thermal resistance, electrical, mechanical and impregnated properties. It is suitable for slot insulation, interphase insulation & liner insulation in F Class electrical motors.

Features and Applications:

Temp. Class F (155^o class)

High Mechanical Strength, excellent electrical property and immersing the function

As slot, interphase and liner insulation for Y2 and other F-Class electric apparatus.

Availability: Form: Roll, Sheet, Strip (Colors: Pink, White)

Properties			Unit	Typical Values
Norminal Thickness			mm	0.15	0.18	0.23	0.30
Thickness Tolerance			mm	0.005	0.005	0.010	0.010
Grammage			g/m2	155	192	255	355
Tensile Strength	MD	Not folded	N/10mm	110	134	175	259
		After folded		107	134	170	256
	TD	Not folded		102	128	165	256
		After folded		99	126	170	253
Elongation		MD	%	14		12
		TD		18		12
Breakdown voltage		Room Temp	KV	8	9	12	15
155^oC + 2^oC				7	8	11	13.5
Bonding property at room temp.				No delamination
Bonding property at 180^oC ± 2^o, 10 min.				No delamination, No bubble, No adhesive flow
Bonding property when affected by damp				No delamination
